Princess Anne Theatre

The Academy's state-of-the-art private cinema provides seating for 227 and world-class digital projection facilities.

If you can see this message rather than a virtual tour then please click here to install the adobe flash player.
If you are still unable to view the virtual tour then you may need to enable javascript in your browser (click here for instructions).
If you are still experiencing problems then please email Revolution Viewing at support@revolutionviewing.com

Primarily used for our year-round membership screenings the space can also be booked to add a cinematic flavour to corporate events or as a lecture or theatre space.

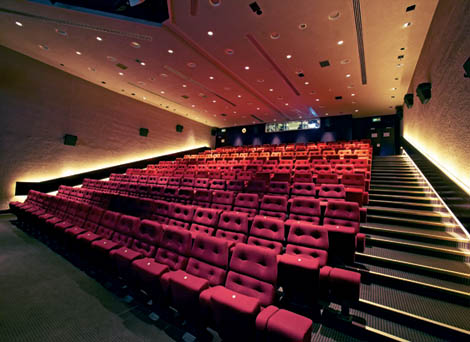

A fully refurbished, purpose-built auditorium with 227 luxurious seats, the Princess Anne Theatre was named after the Academy's former president. Fully air-conditioned and furnished to the highest standards, the theatre provides a relaxed and comfortable atmosphere for audiovisual presentations and previews.

A major feature offered by the auditorium is Digital Cinema Projection, supplied by Barco D-Cine Premiere DP100, the world's most advanced large screen Digital Cinema projector, which combines the highest resolution 2k DLP Cinema technology from Texas Instruments with a host of unique installation and operating benefits. New for 2010, this projector can now also screen in 3D.

The Princess Anne Theatre is available for private screenings, awards, press shows, ceremonies, conferences, AGMs, Seminars and industry screening previews.

Click here to view more images of the Princess Anne Theatre.

The Screening Facilities

BARCO DP100 video/data projector:
35mm / 70mm/ digi beta/ digital / HD Cam/ DVD / Laptop

HD Playback
Dolby® Digital Cinema system
Dolby® Cinema 3D (advanced notice required)
Kodak Digital Cinema system

Sound
Dolby CP650 / CP200 6.1 EX
DTS XD10 6.1 ES

Moving Head lights x 4 (DMX Controlled)
Multi-coloured Screen Curtains Lights
Multi-coloured handrails (DMX Controlled)
LCD display monitor (lectern)

Dimensions

Length: 19 meters
Width: 14 meters
Height: 6 meters
Seated (fixed): 227

View room plan (69 KB)
View stage dimensions (214 KB)

Technical Specifications

Projection Facility: 2 x 35mm Cinema Projectors (Cinemaccanica). Barco Digital Cinema Projector (Model DP100). 1 x 35mm high brightness slide projector.
Sound System: Dolby CP650 Sound Processor. Dolby DMA8 (Digital Media Adaptor). JBL 3 Way Speaker Screen Array System. 9 x Crown CTS2000 amplifiers.
Power: 32 amp cee form single/3 phase x3.
Video play back: Digibeta/betaSP/ DVD/low band u-matic/VHS.
Stage Lighting: 2 x 2k and 4 x 1k.
Phone points on stage: available by arrangement.
ISDN lines: available by arrangement.
Expanded Specification: screen masking is independently variable on all 4 sides.
